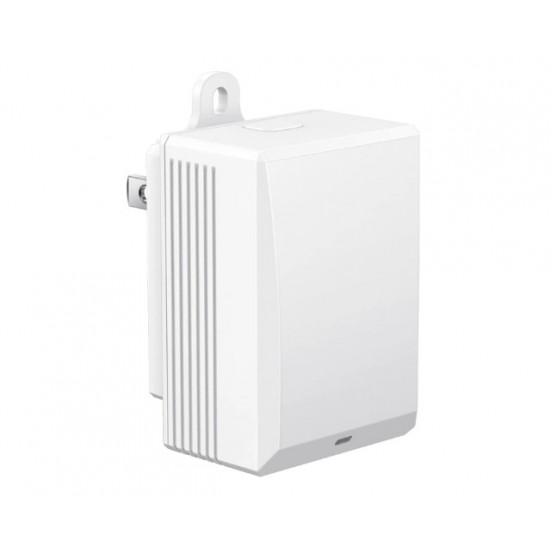

The NEPGW-mini series is a Bluetooth® Low Energy (BLE) to Wi-Fi gateway designed to bridge BLE beacon data to cloud servers through Wi-Fi networks.

The NEPGW-mini series scans and collects advertising packets from nearby BLE beacons and uploads the data to cloud servers through Wi-Fi networks.

The gateway supports indoor positioning, centralized asset tracking, and real-time condition monitoring applications while maintaining low deployment cost.

Its modular communication architecture enables flexible Bluetooth® and WiFi configurations for different customer requirements.

Communication Options:

The NEPGW-mini series is available with multiple Bluetooth® and Wi-Fi communication module options to support different deployment requirements.

·        Bluetooth® 4.2 option

·        Bluetooth® 5.0 option

·        2.4GHz Wi-Fi option

·        Dual-band Wi-Fi option

·        Flexible master/slave communication module combinations

Key Features:

·        Mini size and compact design

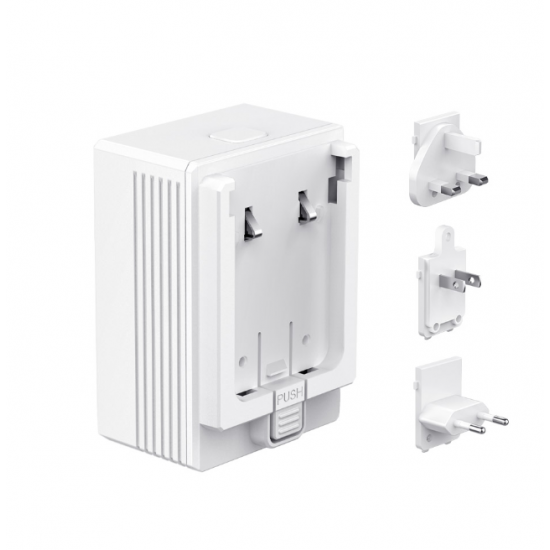

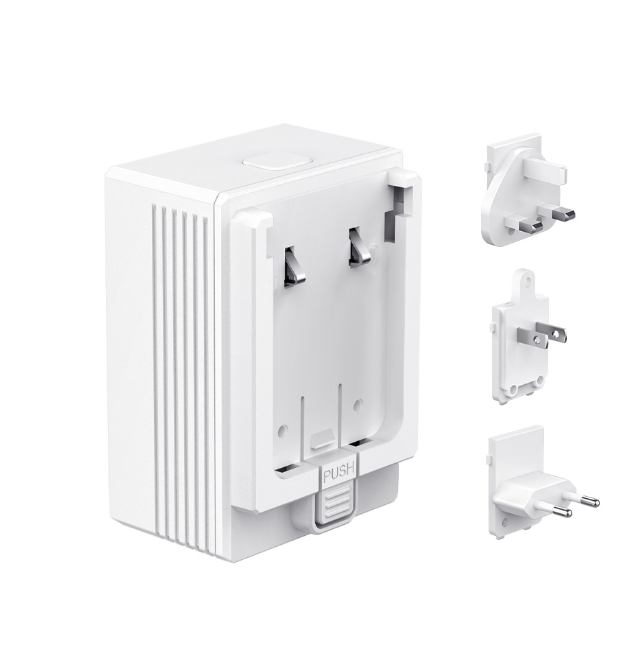

·        Interchangeable AC plug design

·        BLE to Wi-Fi data relay

·        Supports MQTT communication

·        Supports iBeacon and Eddystone decoding

·        Supports beacon raw data decoding

·        RSSI, MAC address, ADV name, and raw data filtering

·        Duplicate data filtering mechanism

·        Flexible hardware architecture

·        Supports AC and Micro USB power supply

·        FCC, ETL, CE, and UKCA certified
