NephSystem Access Elite RFID Access Control System

NephSystem Technologies Access Control Elite is a total solution that integrates all of features into one. It is about proving users where and who they are with precise data such as real-time Personnel Monitoring, accurate Time & Attendance information, etc.

Key Benefits Include:

• Using computer networks and TCP/IP to connect all sites(readers) across whole building/parking lot, etc. to a central database.
• Reduces the cost by using Network Cable and Power over Ethernet technology to reduce installation time, the amount of equipment deployed and energy consumed throughout the systems operational life.

• In real-time, displaying/allowing any personnel or vehicles that have entered an access point(s) also preventing those not authorized from entering the monitored area.
• 7 days and 24 hours unmanned operation, Automatic recovery feature after power failure occurring.
• Applies to both Personnel & Vehicle Access points by using 13.56MHz proximity type RFID or long range UHF Gen 2 type RFID.
• Real-time Activity Monitoring and Real Time Map View.
• Unlimited devices/access doors and unlimited cardholder/tags per license.
• Flexible and customization report generation (e.g. PDF or Excel format).
• Versatile types of RFID cards/tags including card type, wristband type or vehicle windshield type, etc.
• Email alert or notifications – Critical alerts sent to security personnel for each reported event.

Main Components for the NephSystem Access Control System:

• Optional 13.56MHz Proximity RFID wall-mounted Reader - Model No. N670
• 13.56MHz ISO14443A Protocol
• Ethernet (RJ45) and PoE Interface(s)
• 9-12VDC Power Input
• Built-in Dry Contact Type Relay
• IP68 Rated Water/Dust Proof
• Built-in Programmable Buzzer and LED

• Optional 860MHz~960MHz UHF Gen 2 RFID 4 Ports Reader - Model No. N680
• Ethernet (RJ45) or PoE Interface(s)
• 12VDC Power Input
• Built-in Dry Contact Type Relay
• IP54 Rated

• Optional 2.45GHz Active RFID Reader - Model No. NSAR-850 or NSAR-800
• Built-in Dry Contact Type Relay
• Long Reading Distance w/ NSAT Active type Tags
• 9VDC Power Input or PoE Version
• IP55 Rated

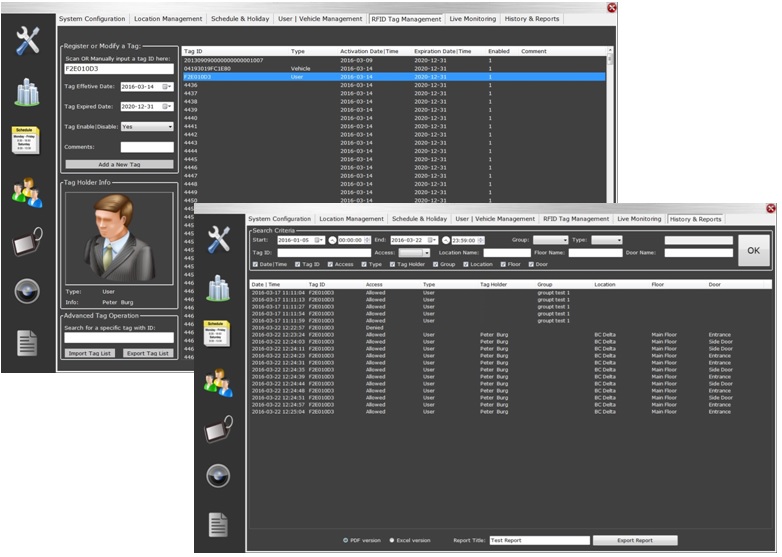

Software Features Include:

• Unlimited Devices/Access Doors and Unlimited Cardholder/Tags Per License.
• 7 days and 24 Hours Unmanned Operation, Automatic Recovery Feature After Power Failure Occurring.
• Smart Database Engine For Backup, Maintenance, etc.
• Email Alert/Notification Upon Reported Events
• Password Protection

• Flexible Location/Floor/Access Points Management
• Free Adding/Deleting/Modifying Floor Maps Upon Users
• User Friendly GUI Design with Graphic Animation

• User Definable Working Schedules, Holidays, Shifts, etc.
• Flexible User/Vehicle Profile Modification including adding/modifying user/vehicle  photos, etc.
• Flexible Tag Management including import/exporting from/to files, etc.

• Real Time Access Logging/Displaying/Floor Mapping for Users/Vehicles
• Customizable Reports Generation to PDF or Excel Format.

Access control for fitness center

RFID gate access control system for authorized persons
