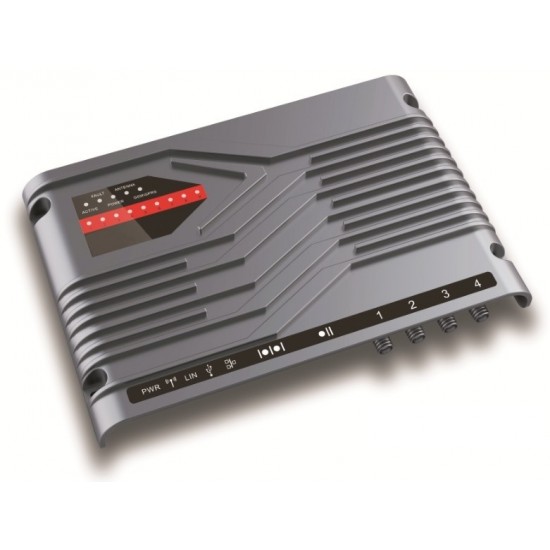

The EPCglobal™-certified NephSystem Technologies N680 long range 4-Port reader is a stationary, UHF Gen 2 RFID tag reader and writer that operates at the global 860MHz ~ 960MHz frequency bands, it provides network (RJ45 or Wi-Fi) and serial (RS-232) and USB 2.0 connectivity between tag data and enterprise system software. With its powerful Impinj R2000 RFID engine, the software adjustable power output ability as well as the capability of integrating with up to 4 antennas, N680 is able to support fast tag read/write operation with high identification rate.
As a result of all the above, N680 allows solution providers to customize the reader to each application, such as Personnel Tracking/Monitoring, Warehouse Management, High Value Asset Tracking, Hospital, Schools, Vehicle/Train Tracking, Parking Management, Manufacturing, Shop Floor, Toll, etc. As well as it offers users the most versatile, flexible and convenient measurement capabilities.
Main Features:
N680 Ordering Info:
|
|
RS-232 |
USB |
RJ45 Ethernet |
Power Over Ethernet |
Wi-Fi |
|
|
N680 |
√ |
√ |
√ |
|
|
|
|
N680P |
√ |
√ |
√ |
√ |
|
|
|
N680W |
√ |
√ |
√ |
|
√ |
|
|
N680 Combo Kit |
1 x Four Antenna Port N680 Reader |
|||||
|
1 x Circular Polarization Type Antenna (9dBi) |
||||||
|
1 x Three-Meter Long Antenna Cable |
||||||
|
UHF EPC Gen 2 Sample Tags |
||||||
|
Free SDK |
||||||
