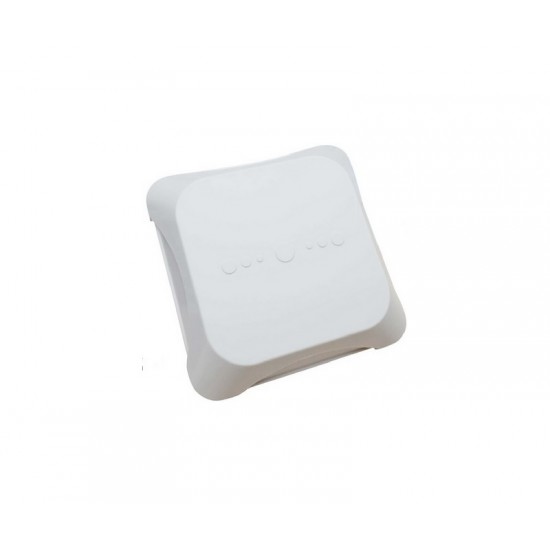

The EPCglobal™-certified NephSystem Technologies N620 long range and high performance Integrated reader is a stationary, UHF Gen 2 RFID reader/writer that operates at the global 860MHz ~ 960MHz frequency bands, it has most kinds of interfaces built in, such as RS232 serial, RS485, TCP/IP Ethernet port as well as Wiegand 26/34. The optional 802.11 b/g Wi-Fi or POE (Power over Ethernet) is also available. With its powerful Impinj R2000 RFID engine and the excellent anti-collision performance, it fully supports EPC CLASS1 G2, ISO18000-6B protocol tags.
N620 UHF integrated Reader can be widely applied and deployed in many RFID related application fields such as Logistics, Access Control, Anti-counterfeit and Industrial Production Process Control System, etc.
Main Features:
-
860~960MHz global frequency band (frequency could be adjusted through software)
-
Based on impinj R2000 core design as well as integrated high performance 9dBi antenna, excellent performance in terms of reading range, multi-tag detection as well as awesome anti-collision feature
-
RF output power up to 30dbm (software adjustable)
-
Built-in high performance 9dbi circular type antenna, one additional TNC type of antenna port is available on board
-
Wide power input range from 9V till 24VDC, POE (Power over Ethernet) is optional
-
Support RS232, RS485, Wiegand 26/34, TCP/IP communication interfaces, optional Wi-Fi feature is available
-
Optional two channels of dry-contact relaysIP67 rated and Ultra rugged design, ideal for any outdoor applications in harsh environment
