The NEPH3 Badge Beacon is a long-range Bluetooth® Low Energy (BLE) beacon designed in a slim credit card size form factor for personnel identification, indoor positioning, access management, and location-based services. With an ultra-low-power Nordic nRF52 chipset, IP66 waterproof protection, and up to 5 years of battery life, the NEPH3 delivers reliable performance for enterprise and industrial IoT applications.
It is engineered for commercial and industrial deployments. It supports indoor positioning, personnel tracking, proximity marketing, visitor management, and location-based services in environments such as offices, hospitals, schools, exhibitions, and smart facilities.

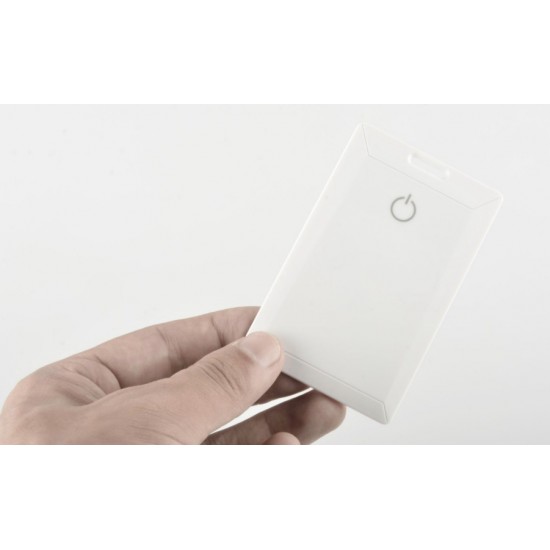

Built with the Nordic nRF52 ultra-low-power ARM® chipset, the NEPH3 provides stable wireless performance while maintaining exceptional energy efficiency. Its compact dimensions of 85.6 mm × 54.1 mm × 5.2 mm make it easy to wear with a lanyard, attach to badges, or integrate into personnel identification systems.
The device is equipped with a high-capacity soft-packed Li-MnO2 battery that can support up to 5 years of operation under default settings. Battery life may vary depending on transmission interval, power settings, and deployment conditions.
The NEPH3 Badge BLE Beacon includes an LED indicator that flashes when battery capacity falls below 5%, while also supporting real-time battery status reporting. Transmission power can be configured from -40 dBm to +4 dBm to balance coverage and power consumption. The beacon uses a high-performance 50-ohm antenna to ensure stable and reliable signal transmission. The standard enclosure color is white, while custom colors, branding, and logo printing are available upon request.
Main Features:
