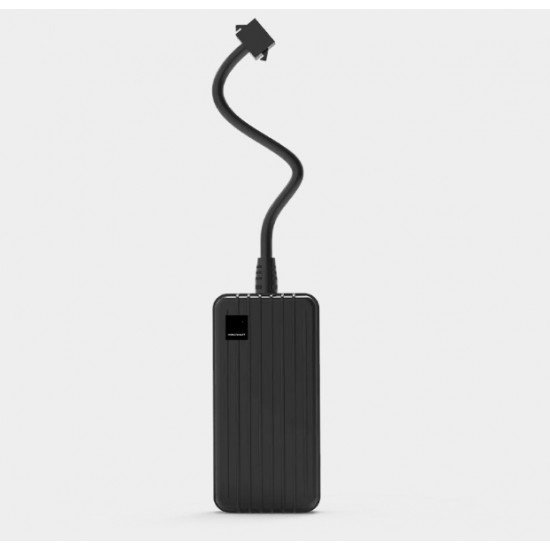

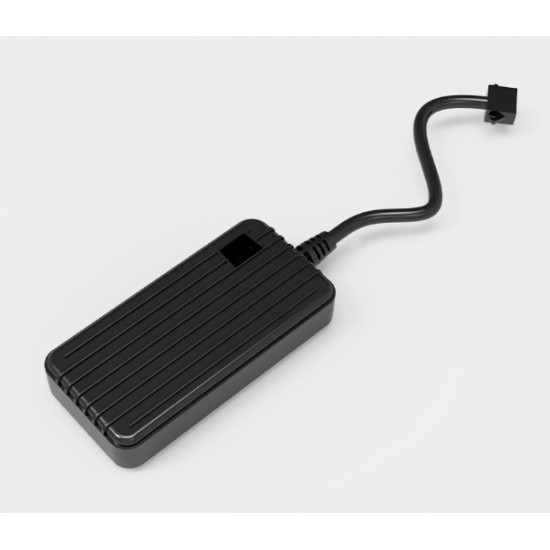

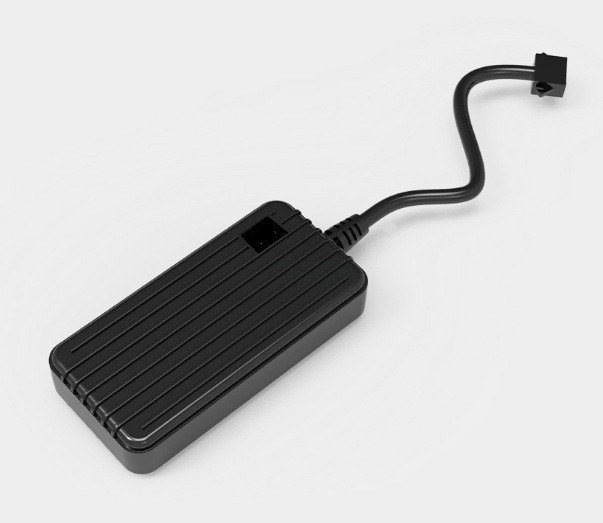

The
NEPVT001 Vehicle Cellular Tracker is an intelligent vehicle monitoring terminal
that integrates GSM, Cat-M, Cat.1, NB-IoT, GNSS, Bluetooth, multiple built-in
sensors, and expandable GPIO interfaces to support various vehicle tracking
applications across global networks and regions.
The
NEPVT001 enables real-time monitoring of vehicle location and operational
status, automatically triggering alarms whenever abnormal events or conditions
are detected. Its compact design allows for convenient installation and direct
connection to the vehicle power supply system.
To enhance
security and reliability, the device includes a built-in backup battery that
functions as an external power disconnection alarm, ensuring notifications can
still be sent if vehicle power is interrupted.
In
addition, the NEPVT001 supports ACC ignition detection and remote engine
shutdown functionality, making it suitable for advanced fleet management,
anti-theft protection, vehicle security, transportation monitoring, logistics
operations, and intelligent vehicle management applications.
Main Features:
-
Integrates multiple positioning technologies, including GNSS, LBS, Wi-Fi, and Bluetooth positioning
-
Supports global wireless communication networks, including LTE Cat.1, Cat-M, NB-IoT, GSM, GPRS, and EDGE
-
Built-in sensors for monitoring vehicle location, tampering/pull-out events, towing, collision, and vibration detection
-
Supports external sensor expansion through GPIO interfaces, including temperature and humidity sensors
-
Supports remote Firmware Over-The-Air (OTA) upgrades and visual cloud-based data management
-
Reports data hourly by default, with local storage backup activated during network interruptions
-
Intelligent alarm notifications for abnormal events such as low battery, geofence violations, tampering, and other abnormal conditions
-
Multiple peripheral interfaces supported, including GPIO and RS485/TTL
-
Digital input interfaces can monitor ignition (ACC), door status, and alarm button signals
-
Digital output interfaces support remote engine shutdown and vehicle control applications
Electrical
& Interface Features:
-
Digital
open-drain outputs for relay and output control
-
Configurable
digital and analog input support
-
RS485,
RS232, and 1-Wire industrial interfaces
-
Supports ACC
ignition monitoring
-
Multiple
configurable DI/AI input options
-
Large
onboard buffer storage capacity
-
Supports OTA
firmware upgrades
-
Suitable for
fleet management and vehicle telematics applications
